[大数据]elasticsearch——进阶检索

上篇回顾：elasticsearch入门检索
本篇主要记录进阶检索的使用

1、样本测试数据

准备了一份顾客银行账户信息的虚构的JSON文档样本。每个文档都有下列的schema（模式）。

"account_number" : 2,
"balance" : 28838,
"firstname" : "Roberta",
"lastname" : "Bender",
"age" : 22,
"gender" : "F",
"address" : "560 Kingsway Place",
"employer" : "Chillium",
"email" : "robertabender@chillium.com",
"city" : "Bennett",
"state" : "LA"

文档地址：https://github.com/elastic/elasticsearch/blob/v7.4.2/docs/src/test/resources/accounts.json ，导入测试数据

2、search API

ES支持两种基本方式检索；

1. 通过REST request uri 发送搜索参数 （uri +检索参数）；
   如：GET bank/_search?q=*&sort=account_number:asc

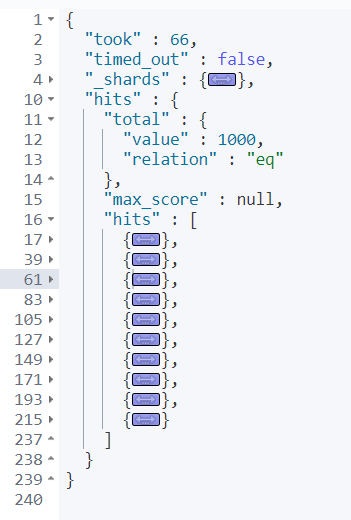

   响应体：

   之所以只有10条数据，是因为存在分页查询，可以使用from和size指定。

2. 通过REST request body 来发送它们（uri+请求体）；

   GET /bank/_search
   {
     "query": { "match_all": {} },
     "sort": [
       { "account_number": "asc" },
       {"balance":"desc"}
     ],
     "from": 20,
     "size": 10
   }


   更多详细信息可以参照：文档地址

3、Query DSL

(1) 基本查询

Elasticsearch提供了一个可以执行查询的json风格的DSL。被称为Query DSL，该查询语言非常全面，且还可以针对某个字段。

{
  QUERY_NAME:{
 	ARGUMENT:VALUE,
    ARGUMENT:VALUE,
	FIELD_NAME:{
	  ARGUMENT:VALUE,
	  ARGUMENT:VALUE,...
	 }
   }
}

如：

GET bank/_search
{
  "query": {
    "match_all": {}
  },
  "sort": [
    {
      "account_number": {
        "order": "desc"
      }
    }
  ],
  "from": 20,
  "size": 10
}

(2) 只返回部分字段查询

GET bank/_search
{
  "query": {
    "match_all": {}
  },
  "from": 0,
  "size": 5,
  "sort": [
    {
      "account_number": {
        "order": "desc"
      }
    }
  ],
  "_source": ["balance","firstname"]

}

响应体：

{
  "took" : 2,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 1000,
      "relation" : "eq"
    },
    "max_score" : null,
    "hits" : [
      {
        "_index" : "bank",
        "_type" : "account",
        "_id" : "999",
        "_score" : null,
        "_source" : {
          "firstname" : "Dorothy",
          "balance" : 6087
        },
        "sort" : [
          999
        ]
      },
      {
        "_index" : "bank",
        "_type" : "account",
        "_id" : "998",
        "_score" : null,
        "_source" : {
          "firstname" : "Letha",
          "balance" : 16869
        },
        "sort" : [
          998
        ]
      },
      {
        "_index" : "bank",
        "_type" : "account",
        "_id" : "997",
        "_score" : null,
        "_source" : {
          "firstname" : "Combs",
          "balance" : 25311
        },
        "sort" : [
          997
        ]
      },
      {
        "_index" : "bank",
        "_type" : "account",
        "_id" : "996",
        "_score" : null,
        "_source" : {
          "firstname" : "Andrews",
          "balance" : 17541
        },
        "sort" : [
          996
        ]
      },
      {
        "_index" : "bank",
        "_type" : "account",
        "_id" : "995",
        "_score" : null,
        "_source" : {
          "firstname" : "Phelps",
          "balance" : 21153
        },
        "sort" : [
          995
        ]
      }
    ]
  }
}

(3) match匹配查询

• 基本类型（非字符串），精确控制

  GET bank/_search
  {
    "query": {
      "match": {
        "account_number": "20"
      }
    }
  }


  match返回account_number=20的数据。
• 字符串，全文检索

  GET bank/_search
  {
    "query": {
      "match": {
        "address": "kings"
      }
    }
  }


  全文检索，最终会按照评分进行排序，会对检索条件进行分词匹配。
  响应体：

  {
    "took" : 3,
    "timed_out" : false,
    "_shards" : {
      "total" : 1,
      "successful" : 1,
      "skipped" : 0,
      "failed" : 0
    },
    "hits" : {
      "total" : {
        "value" : 2,
        "relation" : "eq"
      },
      "max_score" : 5.9908285,
      "hits" : [
        {
          "_index" : "bank",
          "_type" : "account",
          "_id" : "20",
          "_score" : 5.9908285,
          "_source" : {
            "account_number" : 20,
            "balance" : 16418,
            "firstname" : "Elinor",
            "lastname" : "Ratliff",
            "age" : 36,
            "gender" : "M",
            "address" : "282 Kings Place",
            "employer" : "Scentric",
            "email" : "elinorratliff@scentric.com",
            "city" : "Ribera",
            "state" : "WA"
          }
        },
        {
          "_index" : "bank",
          "_type" : "account",
          "_id" : "722",
          "_score" : 5.9908285,
          "_source" : {
            "account_number" : 722,
            "balance" : 27256,
            "firstname" : "Roberts",
            "lastname" : "Beasley",
            "age" : 34,
            "gender" : "F",
            "address" : "305 Kings Hwy",
            "employer" : "Quintity",
            "email" : "robertsbeasley@quintity.com",
            "city" : "Hayden",
            "state" : "PA"
          }
        }
      ]
    }
  }


(4) match_phrase 短句匹配

将需要匹配的值当成一整个单词（不分词）进行检索

GET bank/_search
{
  "query": {
    "match_phrase": {
      "address": "mill road"
    }
  }
}

{
  "took" : 8,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 1,
      "relation" : "eq"
    },
    "max_score" : 8.926605,
    "hits" : [
      {
        "_index" : "bank",
        "_type" : "account",
        "_id" : "970",
        "_score" : 8.926605,
        "_source" : {
          "account_number" : 970,
          "balance" : 19648,
          "firstname" : "Forbes",
          "lastname" : "Wallace",
          "age" : 28,
          "gender" : "M",
          "address" : "990 Mill Road",
          "employer" : "Pheast",
          "email" : "forbeswallace@pheast.com",
          "city" : "Lopezo",
          "state" : "AK"
        }
      }
    ]
  }
}

(5) multi_math 多字段匹配

GET bank/_search
{
  "query": {
    "multi_match": {
      "query": "mill IL",
      "fields": [
        "state",
        "address"
      ]
    }
  }
}

查询出state或者address中包含"mill IL"的文档，并且在查询过程中，会对于"mill IL"也就是查询条件进行分词。

(6) bool 复合查询

复合语句可以合并，任何其他查询语句，包括符合语句。这也就意味着，复合语句之间 可以互相嵌套，可以表达非常复杂的逻辑。
must：必须达到must所列举的所有条件。
must_not：必须不匹配must_not所列举的所有条件。
should：应该满足should所列举的条件最好，不满足也行。

GET bank/_search
{
  "query": {
    "bool": {
      "must": [
        {
          "match": {
            "gender": "M"
          }
        },
        {
          "match": {
            "address": "mill"
          }
        }
      ],
      "must_not": [
        {
          "match": {
            "age": "38"
          }
        }
      ],
      "should": [
        {
          "match": {
            "lastname": "Wallace"
          }
        }
      ]
    }
  }
}

(7) Filter 结果过滤

Filter主要用来对查询结果进行过滤，并不会计算相关得分

GET bank/_search
{
  "query": {
    "bool": {
      "must": [
        {
          "match": {
            "address": "mill"
          }
        }
      ],
      "filter": {
        "range": {
          "balance": {
            "gte": "10000",
            "lte": "20000"
          }
        }
      }
    }
  }
}

(8) term 精确匹配

和match一样。匹配某个属性的值。但它是精确匹配，建议全文检索字段用match，其他非text字段匹配用term。

GET bank/_search
{
  "query": {
    "term": {
      "address": "mill Road"
    }
  }
}

响应体：

{
  "took" : 0,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 0,
      "relation" : "eq"
    },
    "max_score" : null,
    "hits" : [ ]
  }
}

(9) Aggregation 执行聚合

聚合提供了从数据中分组和提取数据的能力。最简单的聚合方法大致等于SQL Group by和SQL聚合函数。在elasticsearch中，执行搜索返回this（命中结果），并且同时返回聚合结果，把以响应中的所有hits（命中结果）分隔开的能力。这是非常强大且有效的，你可以执行查询和多个聚合，并且在一次使用中得到各自的（任何一个的）返回结果，使用一次简洁和简化的API来避免网络往返。
如：

GET bank/_search
{
  "query": {
    "match": {
      "address": "Mill"
    }
  },
  "aggs":{		//aggs：执行聚合
    "aggs_name":{	//这次聚合的名字，方便展示在结果集中
        "AGG_TYPE聚合的类型(avg,term,terms)":{}
     }
  }，
  "size": 0		//不显示搜索数据
}

• 搜索address中包含mill的所有人的年龄分布以及平均年龄，但不显示这些人的详情

  GET bank/_search
  {
    "query": {
      "match": {
        "address": "Mill"
      }
    },
    "aggs": {
      "ageAgg": {
        "terms": {
          "field": "age",
          "size": 10
        }
      },
      "ageAvg": {
        "avg": {
          "field": "age"
        }
      },
      "balanceAvg": {
        "avg": {
          "field": "balance"
        }
      }
    },
    "size": 0
  }


• 查出所有年龄分布，并且这些年龄段中M的平均薪资和F的平均薪资以及这个年龄段的总体平均薪资

  GET bank/_search
  {
    "query": {
      "match_all": {}
    },
    "aggs": {
      "ageAgg": {
        "terms": {
          "field": "age",
          "size": 100
        },
        "aggs": {
          "genderAgg": {
            "terms": {
              "field": "gender.keyword"
            },
            "aggs": {
              "balanceAvg": {
                "avg": {
                  "field": "balance"
                }
              }
            }
          },
          "ageBalanceAvg": {
            "avg": {
              "field": "balance"
            }
          }
        }
      }
    },
    "size": 0
  }


4、Mapping

Mapping is the process of defining how a document, and the fields it contains, are stored and indexed. For instance, use mappings to define:

• which string fields should be treated as full text fields.
• which fields contain numbers, dates, or geolocations.
• the format of date values.
• custom rules to control the mapping for dynamically added fields.

映射是定义文档以及它所包含的字段（field）如何存储和索引的过程。比如：使用mappings 来定义：

• 哪些字符串字段应被视为全文字段。
• 哪些字段包含数字、日期或地理位置。
• 日期值的格式。
• 控制动态添加字段的映射的自定义规则。

(1) 属性的数据类型：

文档链接

(2) 查看mapping信息

GET bank/_mapping

(3) 创建索引并指定映射

PUT /my_index
{
  "mappings": {
    "properties": {
      "age":    { "type": "integer" },
      "email":  { "type": "keyword"  },
      "name":   { "type": "text"  }
    }
  }
}

响应体：

{
  "acknowledged" : true,
  "shards_acknowledged" : true,
  "index" : "my_index"
}

(4) 添加新的字段映射

PUT /my_index/_mapping
{
  "properties": {
    "employee-id": {
      "type": "keyword",
      "index": false
    }
  }
}

响应体

{
  "acknowledged" : true
}

(5) 更新字段的映射

对于已经存在的字段映射，我们不能更新。更新必须创建新的索引，进行数据迁移。
先创建新的正确映射。然后使用如下方式进行数据迁移。

POST _reindex
{
  "source": {
    "index": "twitter"
  },
  "dest": {
    "index": "new_twitter"
  }
}

详细文档地址：文档地址

5、分词

一个tokenizer（分词器）接收一个字符流，将之分割为独立的tokens（词元，通常是独立的单词），然后输出tokens流。

例如：whitespace tokenizer遇到空白字符时分割文本。它会将文本“Quick brown fox!”分割为[Quick,brown,fox!]。

该tokenizer（分词器）还负责记录各个terms(词条)的顺序或position位置（用于phrase短语和word proximity词近邻查询），以及term（词条）所代表的原始word（单词）的start（起始）和end（结束）的character offsets（字符串偏移量）（用于高亮显示搜索的内容）。

elasticsearch提供了很多内置的分词器，可以用来构建custom analyzers（自定义分词器）。

POST _analyze
{
  "analyzer": "standard",
  "text": "The 2 QUICK Brown-Foxes jumped over the lazy dog's bone."
}

响应体：

{
  "tokens" : [
    {
      "token" : "the",
      "start_offset" : 0,
      "end_offset" : 3,
      "type" : "<ALPHANUM>",
      "position" : 0
    },
    {
      "token" : "2",
      "start_offset" : 4,
      "end_offset" : 5,
      "type" : "<NUM>",
      "position" : 1
    },
    {
      "token" : "quick",
      "start_offset" : 6,
      "end_offset" : 11,
      "type" : "<ALPHANUM>",
      "position" : 2
    },
    {
      "token" : "brown",
      "start_offset" : 12,
      "end_offset" : 17,
      "type" : "<ALPHANUM>",
      "position" : 3
    },
    {
      "token" : "foxes",
      "start_offset" : 18,
      "end_offset" : 23,
      "type" : "<ALPHANUM>",
      "position" : 4
    },
    {
      "token" : "jumped",
      "start_offset" : 24,
      "end_offset" : 30,
      "type" : "<ALPHANUM>",
      "position" : 5
    },
    {
      "token" : "over",
      "start_offset" : 31,
      "end_offset" : 35,
      "type" : "<ALPHANUM>",
      "position" : 6
    },
    {
      "token" : "the",
      "start_offset" : 36,
      "end_offset" : 39,
      "type" : "<ALPHANUM>",
      "position" : 7
    },
    {
      "token" : "lazy",
      "start_offset" : 40,
      "end_offset" : 44,
      "type" : "<ALPHANUM>",
      "position" : 8
    },
    {
      "token" : "dog's",
      "start_offset" : 45,
      "end_offset" : 50,
      "type" : "<ALPHANUM>",
      "position" : 9
    },
    {
      "token" : "bone",
      "start_offset" : 51,
      "end_offset" : 55,
      "type" : "<ALPHANUM>",
      "position" : 10
    }
  ]
}

(1) 安装ik分词器

ES中的分词器针对于中文的分词，并不友好。为此需要安装中文的分词器。
下载地址：https://github.com/medcl/elasticsearch-analysis-ik/releases/tag/v7.4.2

在上一篇文章中，我们已经将elasticsearch容器的“/usr/share/elasticsearch/plugins”目录，映射到宿主机的“ /mydata/elasticsearch/plugins”目录下，所以比较方便的做法就是下载“/elasticsearch-analysis-ik-7.6.2.zip”文件，然后解压到该文件夹下即可。安装完毕后，需要重启elasticsearch容器。
可以通过wget命令来安装：

https://github.com/medcl/elasticsearch-analysis-ik/releases/download/v7.4.2/elasticsearch-analysis-ik-7.4.2.zip

如果Linux没有安装wget，可以通过yum安装：yum install wget
然后通过unzip命令解压：

unzip elasticsearch-analysis-ik-7.4.2.zip

接着创建ik文件夹并将所有文件移动到ik文件夹

mkdir ik
mv * ik
chmod -R 777 ik/

重启elasticserach

docker restart elasticsearch

测试是否安装成功

POST _analyze
{
  "analyzer": "ik_max_word",
  "text": "我是中国人"
}

{
  "tokens" : [
    {
      "token" : "我",
      "start_offset" : 0,
      "end_offset" : 1,
      "type" : "CN_CHAR",
      "position" : 0
    },
    {
      "token" : "是",
      "start_offset" : 1,
      "end_offset" : 2,
      "type" : "CN_CHAR",
      "position" : 1
    },
    {
      "token" : "中国人",
      "start_offset" : 2,
      "end_offset" : 5,
      "type" : "CN_WORD",
      "position" : 2
    },
    {
      "token" : "中国",
      "start_offset" : 2,
      "end_offset" : 4,
      "type" : "CN_WORD",
      "position" : 3
    },
    {
      "token" : "国人",
      "start_offset" : 3,
      "end_offset" : 5,
      "type" : "CN_WORD",
      "position" : 4
    }
  ]
}

(2) 给ik分词器添加自定义词库

• 安装nginx：安装教程
• 修改/mydata/nginx/html下的结构，创建es文件夹，并创建文件fenci.txt，内容可以是自己定义的词库

  就这样吧
  别傻了
  乔碧罗


• 修改/mydata/elasticsearch/plugins/ik/config/IKAnalyzer.cfg.xml

  <?xml version="1.0" encoding="UTF-8"?>
  <!DOCTYPE properties SYSTEM "http://java.sun.com/dtd/properties.dtd">
  <properties>
          <comment>IK Analyzer 扩展配置</comment>
          <!--用户可以在这里配置自己的扩展字典 -->
          <entry key="ext_dict"></entry>
           <!--用户可以在这里配置自己的扩展停止词字典-->
          <entry key="ext_stopwords"></entry>
          <!--用户可以在这里配置远程扩展字典 -->
          <entry key="remote_ext_dict">http://wutingze.cn:88/es/fenci.txt</entry>
          <!--用户可以在这里配置远程扩展停止词字典-->
          <!-- <entry key="remote_ext_stopwords">words_location</entry> -->
  </properties>


• 然后重启elasticsearch
• 通过分词分析可以看到新的分词

  POST _analyze
  {
    "analyzer": "ik_max_word",
    "text": "乔碧罗殿下"
  }


  {
    "tokens" : [
      {
        "token" : "乔碧罗",
        "start_offset" : 0,
        "end_offset" : 3,
        "type" : "CN_WORD",
        "position" : 0
      },
      {
        "token" : "殿下",
        "start_offset" : 3,
        "end_offset" : 5,
        "type" : "CN_WORD",
        "position" : 1
      }
    ]
  }
